Product Description

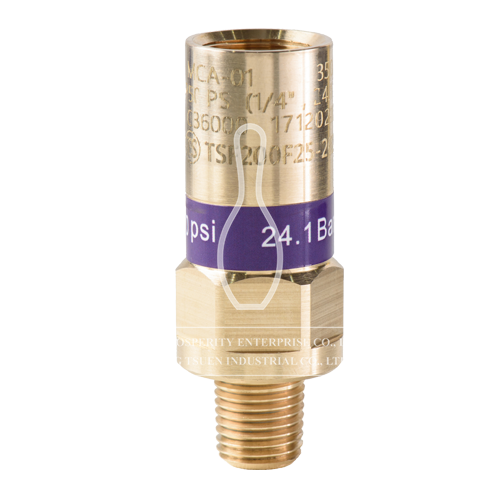

Bowling Brand CSRV Series Cryogenic Safety Relief Valve in ASTM B16 C36000 Brass Material with TS approval is a spring load over pressure safety protection device in cryogenic systems, thermal safety relief applications and LNG application. The CSRV Series Cryogenic Safety Relief Valve is supplied cleaned by CGA-G-4.1 standard for the oxygen service. In addition, the CSRV Series Cryogenic Safety Relief Valve can be ordered with set pressure in pressure range from 50– 600 psi. (3.4 – 41.3 Bar) and pressure preset and permanently locked. Relief Pressure Valve cannot be altered or adjusted in the field.
WARNING:
Inspection and maintenance of Pressure Relief Valve is important. Failure to properly inspect and maintain Pressure Relief Valves could result in personal injuries or property damage. The useful safe service life of a Pressure Relief Valve may be significantly affected by the service environment .
Product Specification
Size: 1/4”, 3/8”, 1/2”
Maximum Inlet Pressure: 10~ 600 psi
Set pressure range: 50~600 psi
Temperature range: -196 °C ~ 74 °C
Fluid: LNG, LO2, LN2, LAR, Non-corrosive gas
Application: Cryogenic pipeline/ cryogenic pressure vessel
Feature:
- Valves are cleaned by CGA-G-4.1 standard for Oxygen application.
- 100% Pressure Test based on factory standard.
- Pressure preset and permanently locked.
- TS approval
Note: There is no adaptor in standard product.
HOW TO ORDER
WARNING:
- Inspection and maintenance of Pressure Relief Valve is important.
- Failure to properly inspect and maintain Pressure Relief .
- Valves could result in personal injuries or property damage.
