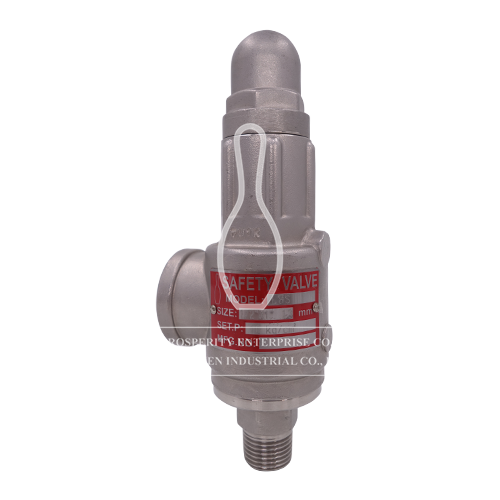

Model SRV- L8SP Stainless Steel 316 Safety Valves, WithSealing, Low Lift

Inquiry PREV NEXT Favorite

Product Description

Specification

Size (Screwed End): 1/2” - 2” (DN15 – DN50)
Type: Sealing, Low-lift
Working Pressure: 2 - 10 kgf/ cm² , 11 - 20 kgf/ cm²
Working Temp:-60℃ to 196℃

Connection End:
NPT/ BSPT/ BSPF Screwed End

General Material:

No.	Part Name	SRV- L8SP Sealing
1	Valve Body	Stainless Steel 316 – ASTM A351 – CF8M
2	Valve Seat	SUS 316/ CF8M
3	Disc	SUS 316/ CF8M
3-1	Soft Seal	Teflon(PTFE)
4	Spring	SUS 304
5	Stem	SUS 316
Working Pressure		2 – 10 kgf/cm²	11 – 20 kgf/cm²
Working Temp.		-60℃ to 196℃
Working Fluid		Noncorrosive Gas, Noncorrosive Liquid, Corrosive Gas, Corrosive Liquid, Air, Steam, Water, Oil

Dimensions (Unit:mm):

Size	L8SP H	Inlet B	Outlet C	Inlet orifice di	Valve Seat Orifice D	E	F	Lift	Weight kg
1/2”x1”	176	1/2”	1”	13	22	40	67	0.88	1.1
3/4”x1””	176	3/4”	1”	19	22	40	67	0.88	1.2
1”x1”	180	1”	1”	25	22	40	71	0.88	1.2
1-1/4”x2”	255	1-1/4”	2”	32	38	66	93	1.52	4.6
1-1/2”x2”	260	1-1/2”	2”	38	38	66	98	1.52	4.6
2”x2”	260	2”	2”	50	38	66	98	1.52	4.6

Safety/ Quality Approvals:
ISO 9001 Certificate
ISO4126 International Standard

HOW TO ORDER

Model	SizeInlet	SizeOutlet	Screwed End	Set Pressure	Valve Disc	Soft Seal	Quantity
SRV- L8SP	1/2”	1”	NPT	2 – 10 kgf/cm²	SUS 316/ CF8M	PTFE	PCS of Size
SRV- L8-LSP	3/4”	1”	BSPT	11 – 20 kgf/cm²
	1”	1”	BSPF
	1-1/4”	2”
	1-1/2”	2”
	2”	2”
Complete Specification For example
SRV- L8SP	1/2”	1”	NPT	10K	SUS 316/ CF8M	PTFE	50 pcs
Please inform the working fluid
Please inform blow-out capacity.
